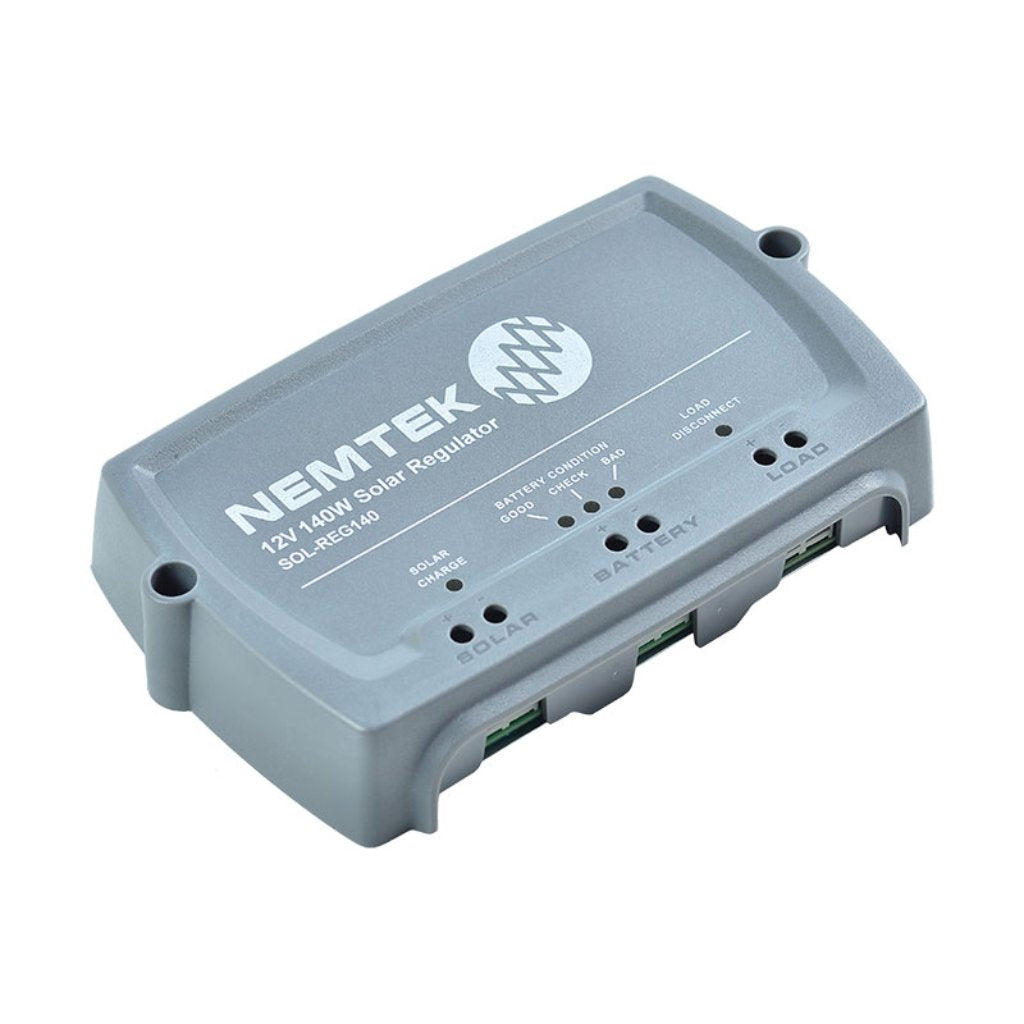

Nemtek Solar Regulator 140W 12V
Safe & Secure Payment Methods
To process your payment, we use internationally verified Payment Gateways, accepting all major credit and debit cards, as well as EFT payments. You can also pay using your NWK account. For more information read our FAQs
This LED solar regulator offers advanced Maximum Power Point (MPP) technology for over 90% efficiency when used with a 140Watt solar panel.
It can also be used with solar panels sizes from 20Watt to 200Watts making it very flexible.
Larger than the 140Watt solar panels can be used in areas where sunlight intensity is low increasing the capture of sunlight.
Features:
LED display indicates and shows solar charge, battery condition and load indication
Set to operate as a 12VDC system
The regulator is equipped with various devices to protect its electronics
Ideally suited for electric fencing that requires solar panels and batteries in remote areas
Power-handling capability:140W
Efficiency:>90%
Maximum solar panel input voltage :24VDC
Solar panel input range:20W – 200W
Battery charge voltage:14.3VDC (Flooded, AGM, Gel Suitable lead acid battery types)
Recommended battery capacity
Solar Panel > 90W – Minimum 90Ah
Solar Panel < 90W – Minimum 40Ah
Maximum flat battery charge current:11A** (11VDC)
Maximum load supply current:10A**
Load disconnect voltage:~11.2VDC
Operating temperature:-20° – 55°C
Terminal size:6mm /12AWG
Mounting:5mm Hole Diameter
