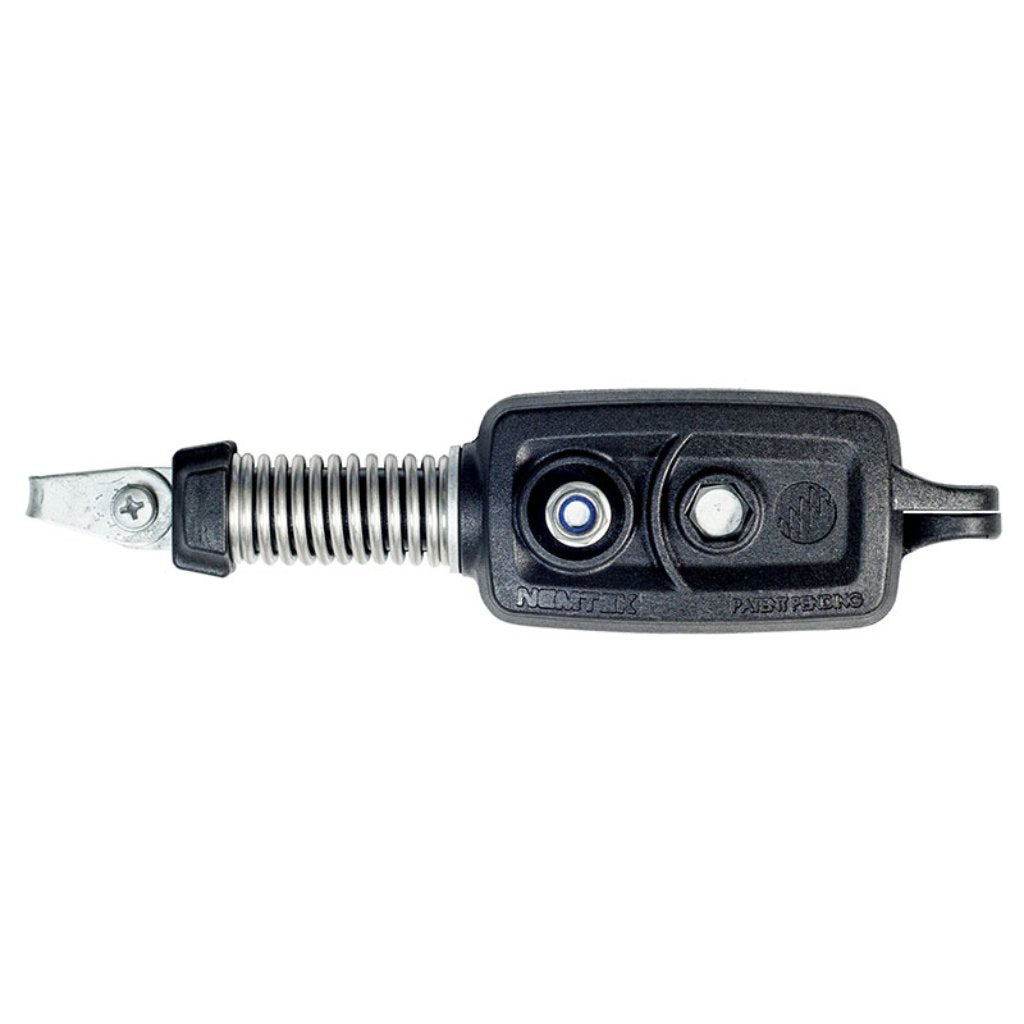

The patented Nemtek Dual Action Tension Sensor DATS3 can detect a change of tension in the fence wire.
It uses the electric fence monitoring circuit to create an alarm condition on the energizer.
The dual action increases the likelihood of an intruder being detected and reduces the possibility of tampering.
There are two models available to cater for different wire types; the DATS3/XL is used with the galvanised and aluminium fence wires and the DATS3/SS for the stainless steel wires.
Detection range (straight line) up to 50m.
Features:
Is paired up with the Hybrid Compression Spring CNT3HB or CNT4HB.
This is so that the tension in the fence wires can be adequately maintained
Detects a change in tension on a fence line
Detects an open circuit at its first-stage trigger
Detects a dead short at its second-stage trigger
Constructed from robust material to suit all wire types up to 2.5mm
Easy to install and retrofit onto most existing Nemtek electric fences
Material:304 Stainless steel:UV stabilised glass filled nylon: XL Galvanised
Colour:Black
IP rating:IP54
Dimensions:170(L) x 60(H) x 46(D)mm (including screws)
Operating detection range:~220N – ~650N
Operating tension range:~20N – ~200N
Operating environment:-20°C – 80°C @ 100% RH (condensing)
Operating voltage:~750V – 12 000V (pulse duration <10msec)
