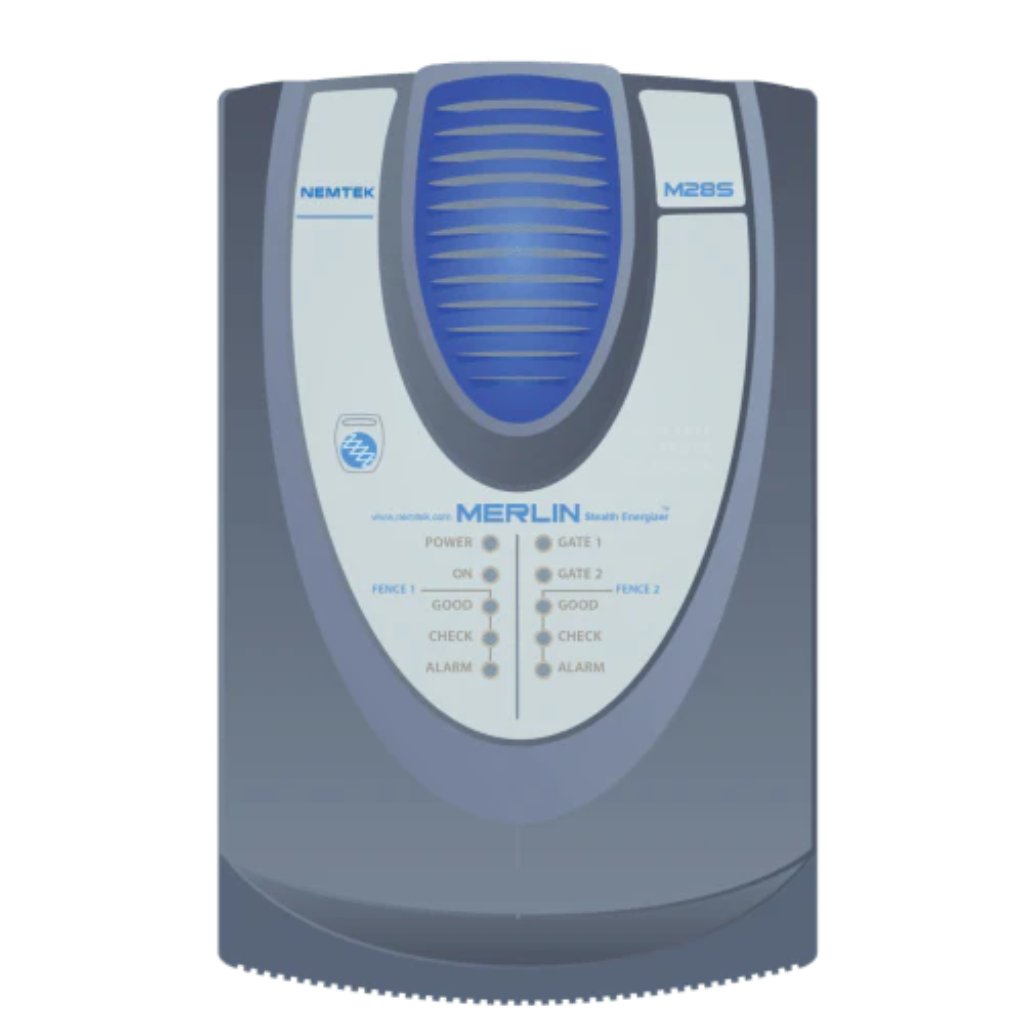

Nemtek Energizer Merlin Stealth M28X-8MHZ-8J Dual Zone
Safe & Secure Payment Methods
To process your payment, we use internationally verified Payment Gateways, accepting all major credit and debit cards, as well as EFT payments. You can also pay using your NWK account. For more information read our FAQs
The Merlin Stealth Dual Zone energizer is a powerful range that can be used for residential to high-end security needs and is a cost-effective solution where more than one zone is required.
Separation of the fence into two zones allows easy identification of the zone affected by fence faults or tampering.
Smart design allows the maximum amount of energy to be transferred to the zone that needs it, yet the combined energy of the two zones will not exceed the legal maximum permitted.
These energizers can be controlled by a tag and/or a keypad and can be programmed to offer customised solutions.
Features:
7.6 Joule output energy (dual zone)
Robust and flexible design for home and commercial security
Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
Connectable to armed response radio or GSM module
Lightning and power surge protection
Intelligent power saving to extend battery life
Easy-to-use tag included for controlling the energizer
Optional keypad for controlling and programming the energizer. This allows the user to control the energizer remotely, with up to four keypads
Powered by 240V mains and includes built-in battery for back-up power
Two built-in gate alarm inputs to monitor if the gates are open or closed
Enclosure size:L370 x W232 x D145mm
Weight:4.8kg excluding battery (7AH), 7.0kg including battery (7AH)
IP rating:IPx4
Operating temperature:-10°C to 50°C
Operating humidity:< 80% non-condensing
Electrical supply voltage:240V
Typical power consumption:27VA (normal operating conditions)
Standby Time:6hrs (fully charged battery)
Energy output:7.6 Joule (500 Ohms load)
Open circuit voltage:9300V
